Softgel encapsulation machines are essential in the production of softgel capsules, widely used in the pharmaceutical and nutraceutical industries. These machines ensure that the encapsulation process is efficient, consistent, and capable of producing high-quality products. Each part of the softgel encapsulation machine serves a specific function, contributing to the overall operation. Understanding the purpose and functionality of these components is crucial for maintaining the machine, troubleshooting, and optimizing production.

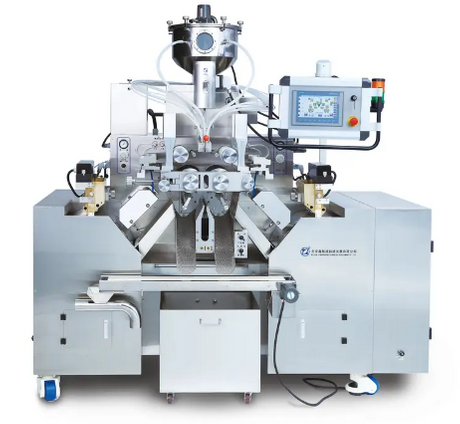

A softgel encapsulation machine comprises numerous specialized parts, each contributing decisively to the encapsulation process. Key components include the medicine hopper and pump, injection wedge, gelatin melting and service tanks, spreader box, casting drum, lubrication rollers, die roll assembly, conveyor, tumble dryer, and PLC touch screen. Each part plays an integral role in ensuring the production of uniform, high quality softgel capsules.
The medicine hopper and medicine pump are pivotal elements in supplying the fill material to the encapsulation area. The medicine hopper stores the medicine or nutrient mixture that will be encapsulated, while the medicine pump accurately controls the flow and volume of the fill material being delivered. The precision of the medicine pump is essential to ensure that each capsule receives the correct dosage, which is crucial for product consistency and effectiveness. Automated systems often assist in regulating the flow rate and pressure, minimizing human error and maintaining uniformity across batches.
The injection wedge is a critical component where the fill material is injected into the gelatin ribbons during the encapsulation process. Positioned between the die rolls, the injection wedge ensures that the fill material is accurately deposited into the formed gelatin pockets. Proper alignment of the injection wedge is essential to prevent leaks and ensure that each capsule is uniformly filled. The precision and timing of the injection process are vital, requiring advanced monitoring and control systems to maintain the quality and integrity of the softgel capsules.
The gelatin melting tank and gelatin service tank are foundational to the softgel encapsulation process. The gelatin melting tank heats and melts the gelatin, transforming it into a liquid state suitable for creating capsule shells. Temperature control is critical here to maintain the desired viscosity and prevent air bubble formation. The gelatin service tank stores the melted gelatin, keeping it at a consistent temperature and ready for transfer to the encapsulation area. This tandem operation ensures a continuous supply of gelatin, minimizing any disruption in the encapsulation process.
The spreader box and casting drum work together to form the gelatin ribbons needed for capsule production. The spreader box evenly coats the melted gelatin onto the casting drum, which rotates to cool and solidify the gelatin into thin, uniform ribbons. These ribbons are then used in the encapsulation process to form the outer shells of the softgel capsules. The thickness and uniformity of the gelatin ribbons are critical to ensure the capsules' integrity and quality. Temperature and tension controls are essential to produce consistent ribbons that meet the required specifications.
Lubrication rollers play a significant role in ensuring the smooth operation of the encapsulation machine. These rollers apply a thin layer of lubricant to the gelatin ribbons before they enter the die rollers. This lubrication prevents the gelatin sheets from sticking to the rollers and each other, facilitating smooth and seamless encapsulation. Proper maintenance and monitoring of the lubrication system are vital to avoid over-lubrication, which can affect the sealing quality of the capsules.
The die roll assembly is at the core of the encapsulation machinery, comprising die rolls, die roll brush, stripper roller, and mangle roller. Die rolls shape the gelatin ribbons and fill them with the medicine, while the die roll brush ensures the precision of the shaping process. The stripper roller assists in detaching the formed capsules from the die rolls, and the mangle roller helps remove any excess gelatin. Synchronization and precision in the die roll assembly are crucial to produce defect-free capsules and maintain high production efficiency.
The conveyor and tumble dryer are essential for the post-encapsulation process. The conveyor transports the freshly formed capsules to the drying area, ensuring they do not stick together and are evenly spaced. The tumble dryer then gently agitates the capsules, allowing them to shed excess moisture. Effective drying is vital to prevent the capsules from becoming deformed or brittle, which could compromise their quality and shelf-life. The drying process can take several hours to days, requiring careful monitoring to achieve the desired moisture content.
The PLC (Programmable Logic Controller) touch screen is the control hub of the softgel encapsulation machine. This advanced interface allows operators to monitor and control every aspect of the encapsulation process, from temperature settings and fill volume to production speed and machine diagnostics. The PLC touch screen provides real-time data and alerts, enabling quick adjustments and minimizing downtime. Automation through PLC systems enhances precision, reduces human error, and ensures consistent quality across production batches.
Understanding the different parts of a softgel encapsulation machine is crucial for anyone involved in their operation or maintenance. Each component—from the medicine hopper and injection wedge to the gelatin tanks, spreader box, die roll assembly, and PLC touch screen—plays a specific and critical role in producing high-quality softgel capsules. Mastery of these elements leads to optimized production, reduced downtime, and consistent quality.
